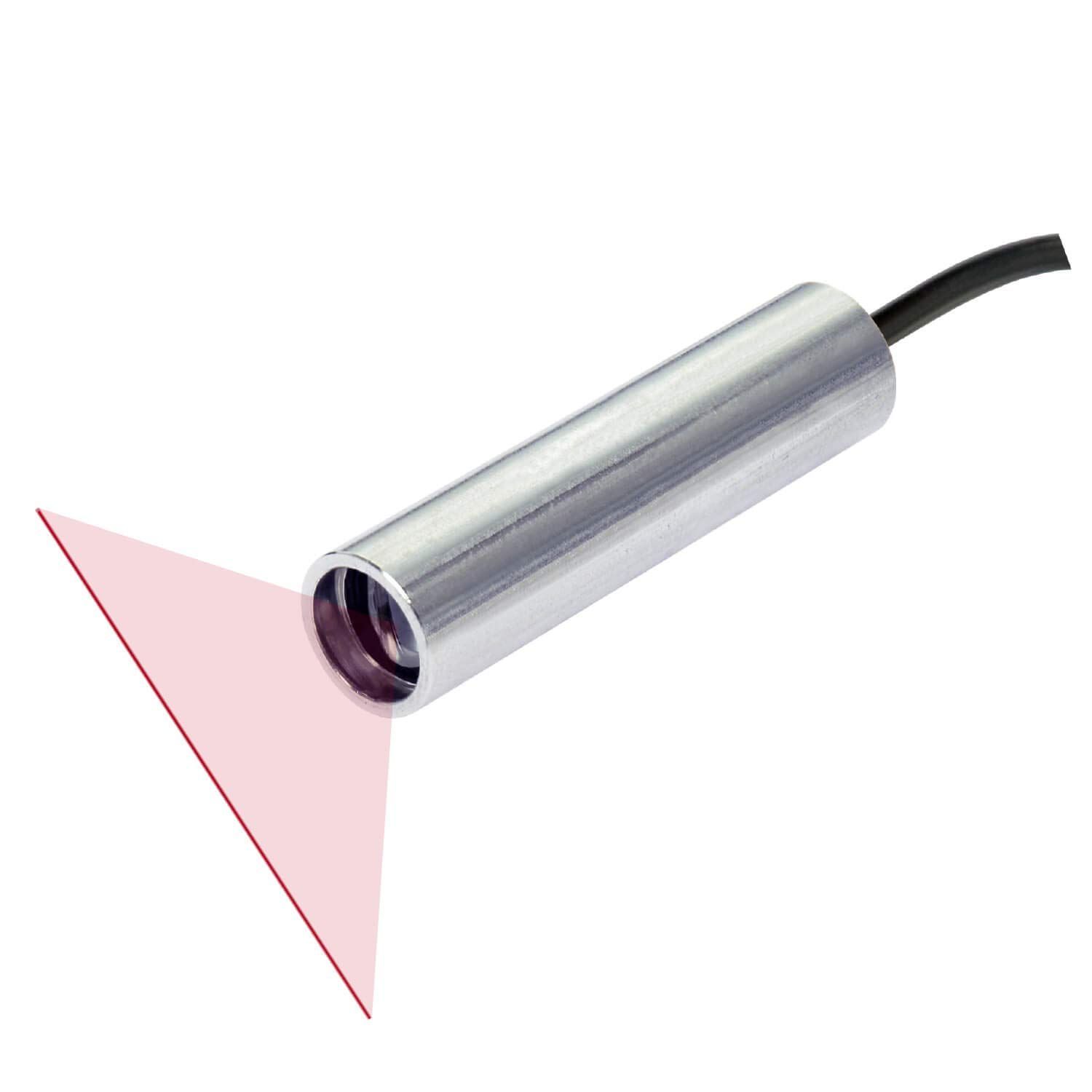

Quarton レーザーモジュール VLM-635-56 LPO-D110-F10 赤色ラインレーザーモジュール Fan Angle 110° Uniform Line クラス1 レーザー 0.39mW未満 (Focus: 10cm)

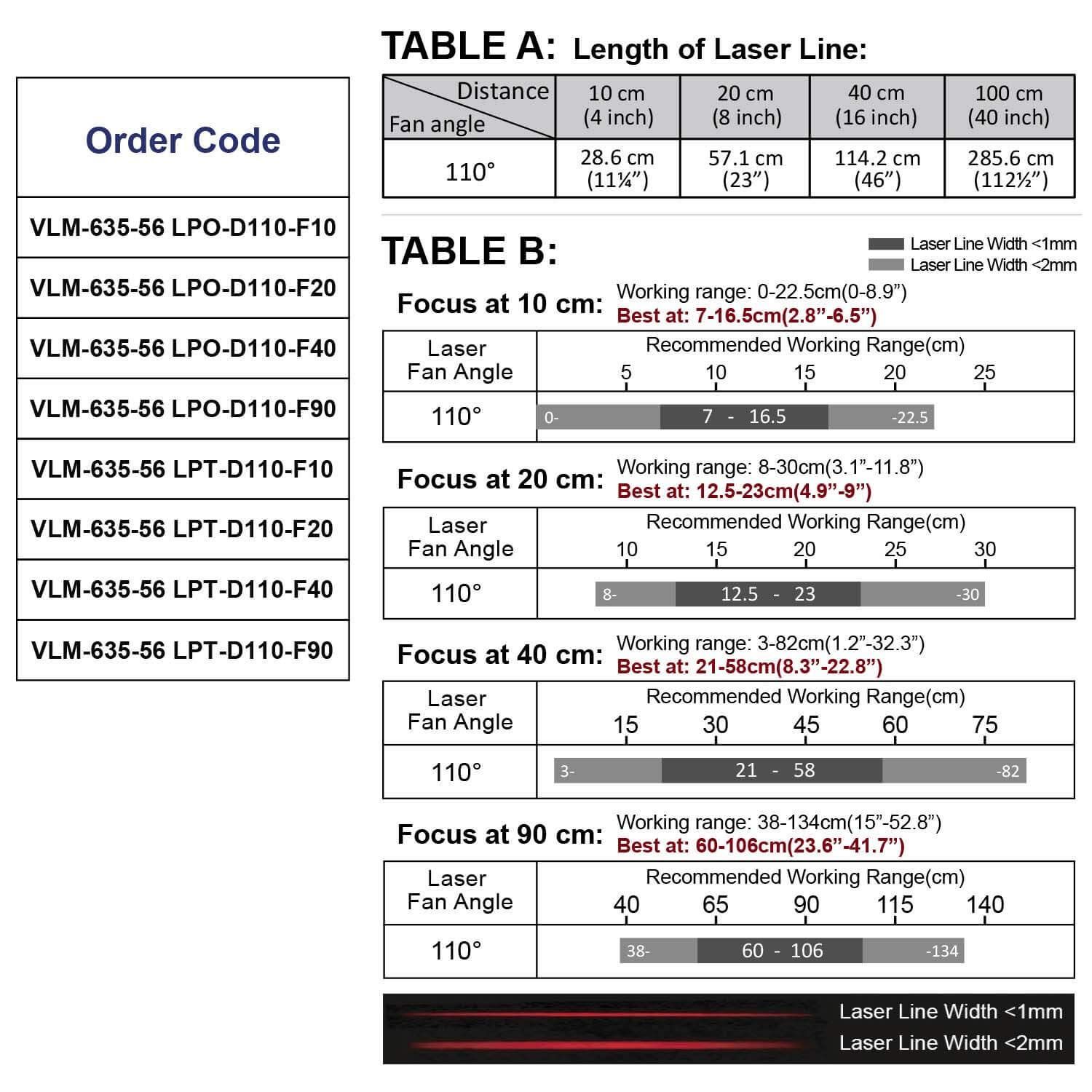

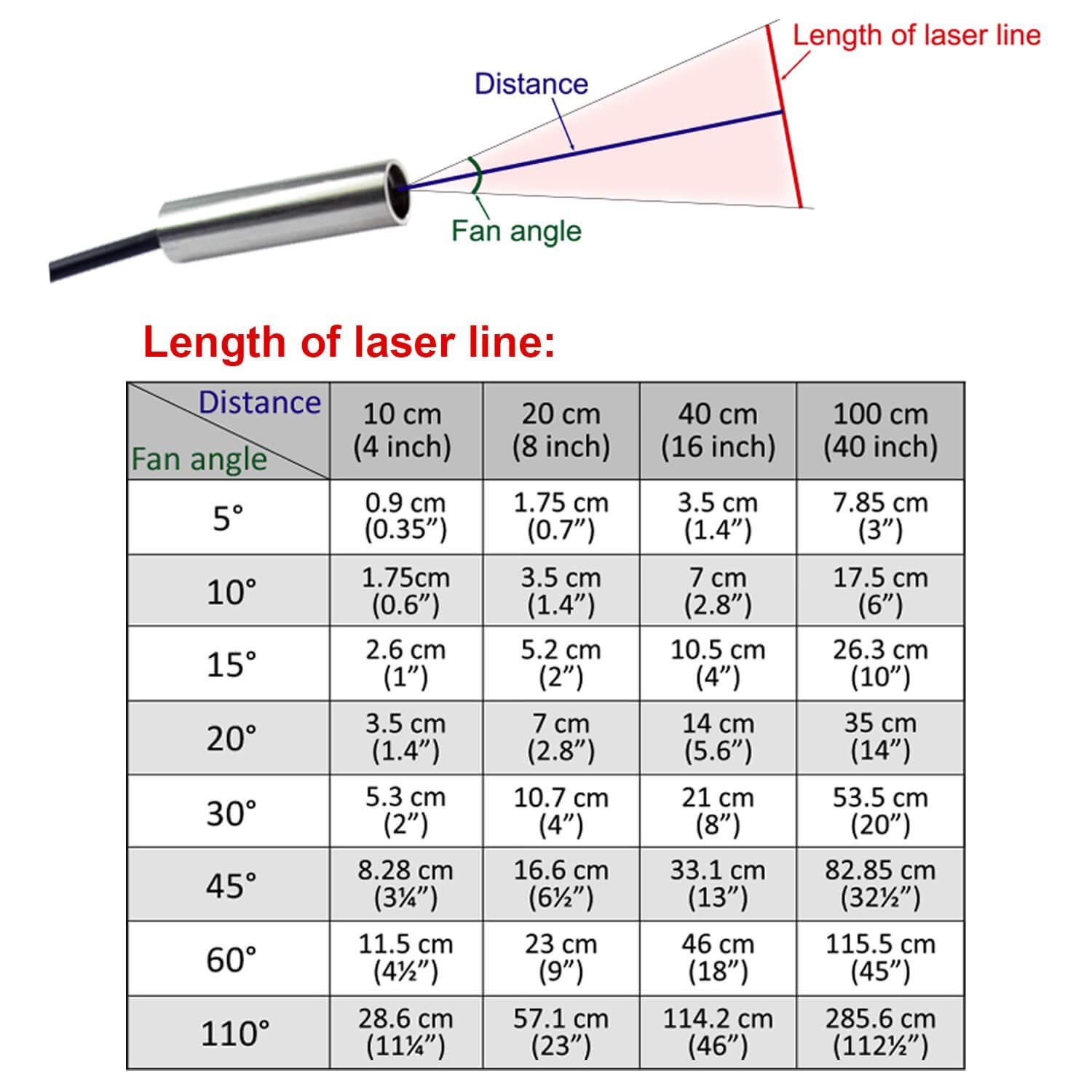

Fan Angle 110° Uniform Line. Line length: 28.6cm at 10cm. High precision red line laser module in compact size. Built with high precision glass line lens and glass laser collimating lens for machine vision and laser alignment application.
Focus range: 10cm. Recommended working range: 0~22.5cm. Best performance working range: 7~16.5cm.
Wavelength : 630~645 nm. Laser power output: Class 1M less than 0.39mW (measured by 7mm aperture stop at the position of 10 cm tested according to the standard IEC-60825-1.)
Dimensions : O10 x 40 mm (O0.39 x 1.575). Weight: 22g (0.776 oz.)
3~6 VDC operation. Connection type : Lead wire. This laser module is not supposed to be sold with additional power source power supply or wiring terminals. Because modules are simply components and it means that you have to wire it to your own power source by yourself.
The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line.
Ideal for automation machine vision image processing digital data acquisition counting precision 3D scannner and science & medical application.
They are available at 10cm 20cm 40cm 90cm focus length; red green wavelength; Class 1M and Class 2M laser class to cover within 1 meter range task.
Please search by using the keywords Quarton VLM-520-56 Quarton VLM-635-56 Quarton VLM-520-58 or Quarton VLM-635-58 to find out more product options on .
APPLICATIONS: ideal for
Machine vision.
Automation industry.
Image processing.
Medical & Science.
Scanning.
Precision 3D scanner.
Counting.
Measurement.
